100% Waterproof

The Penetration-free Solar Installation solution puts roof protection first, ensuring both the integrity of your building and the reliable performance of your solar setup for years to come.

Fast Installation

The base is factory pre-assembled and ready to use. Solar panels can be quickly installed after Hot-air Welded, saving on-site construction time. Increase installation efficiency by 40%.

Super Wind-resistant

High wind-resistant Solar Mounting System. According to SGS testing, the Integrated Membrane-Rail base has a wind resistance of 4000N.

High Applicability

Suitable for all types and specifications of solar panels, with special optimization for lightweight flexible panels. Customizable installation angles available to meet south tilt or east-west installation requirements.

NO PERFORATION SOLUTIONS

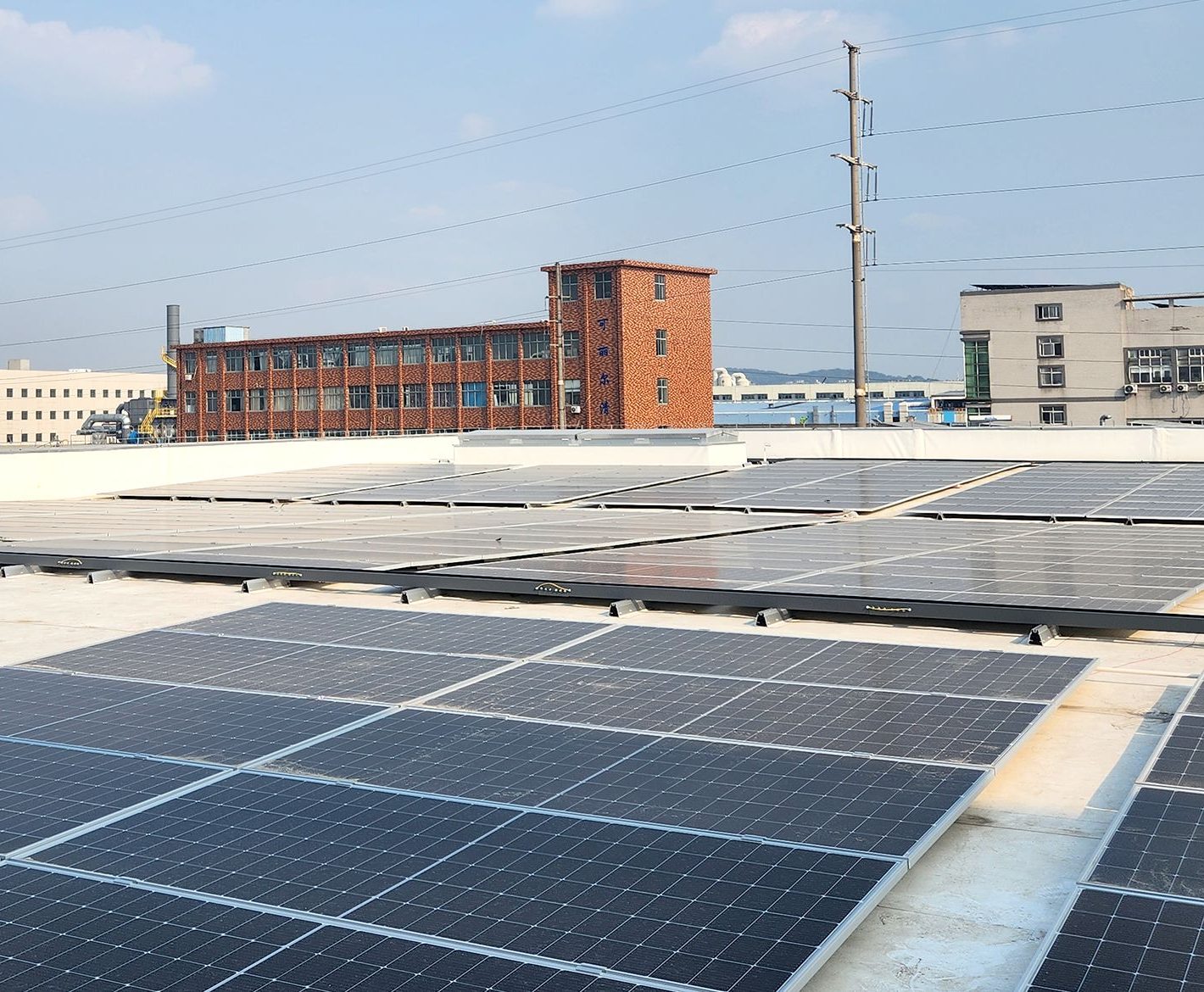

Flat Installation Bracket

Type: V-NP-F

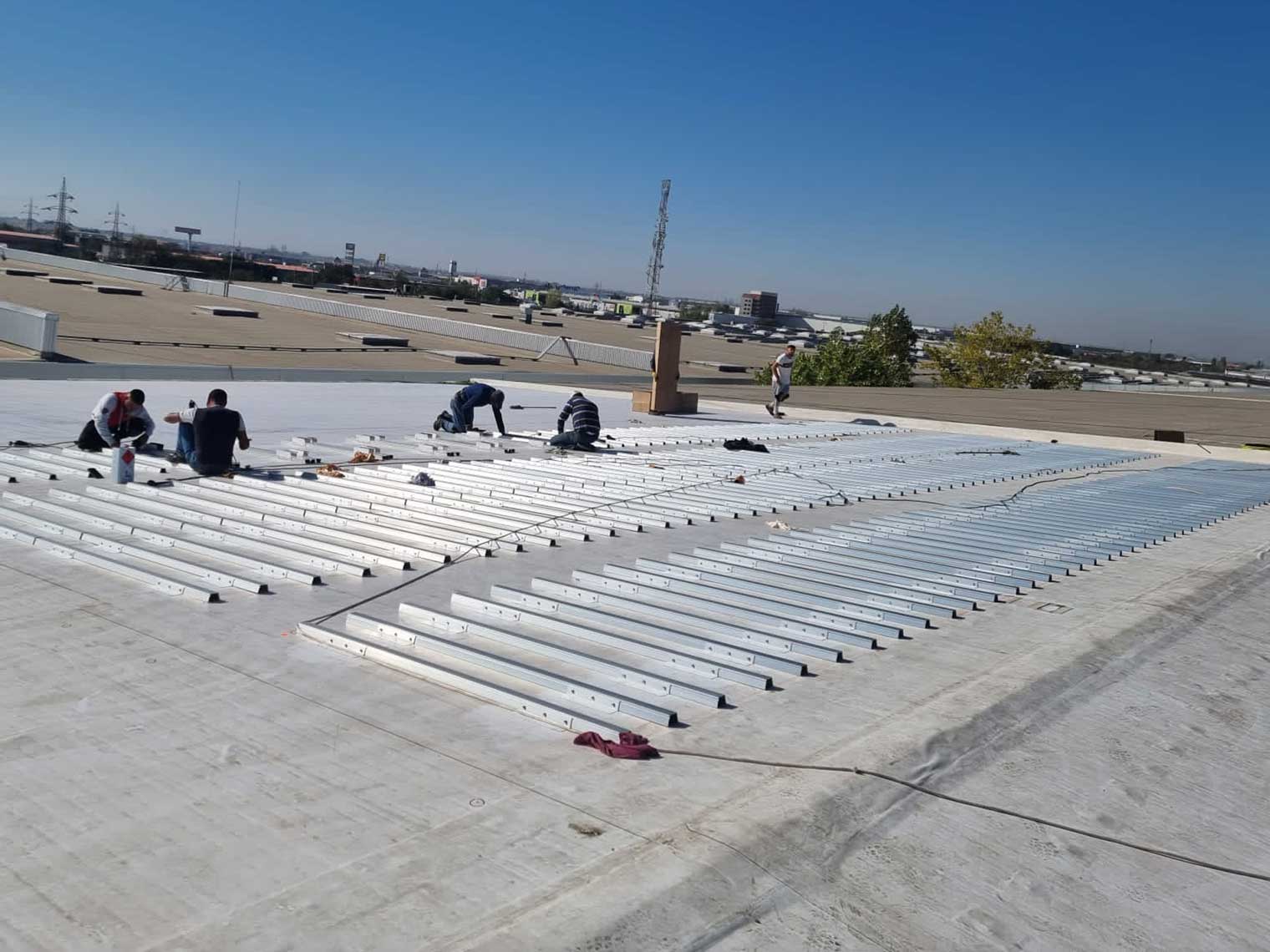

V-NP-F solar bracket system specifically designed for TPO/PVC/EVA membrane roofs. It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.

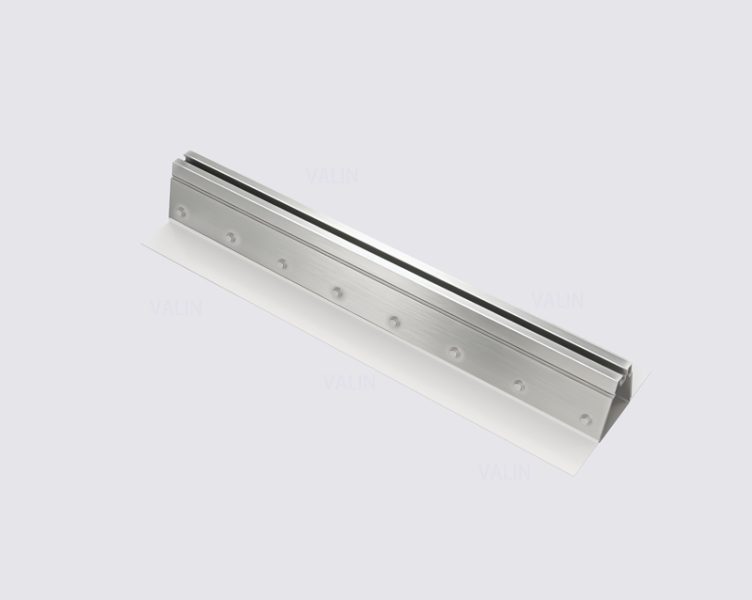

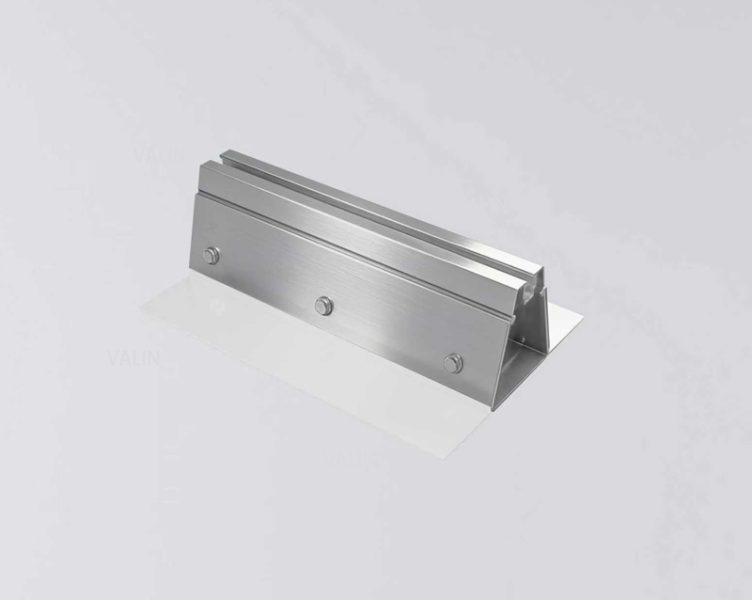

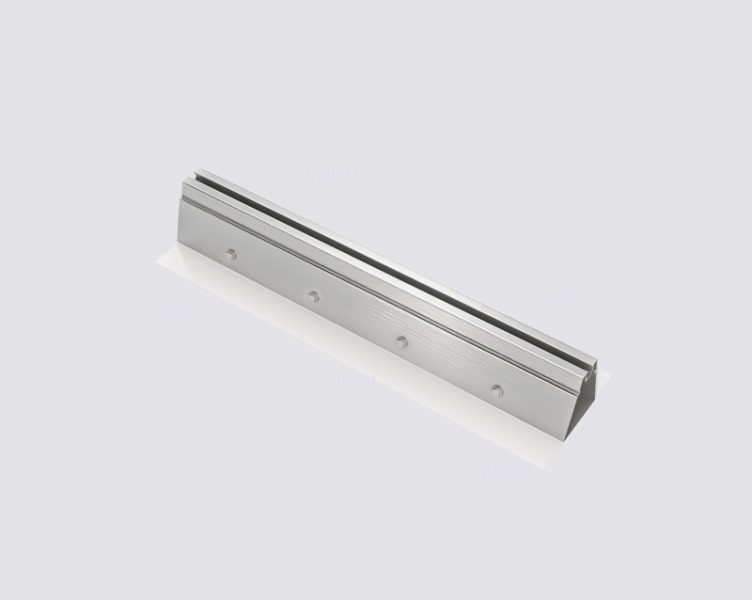

After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

V-NP-F is compatible with every type of commercial roofing, and can be used on mechanically attached, fully adhered and ballasted roof systems.

NO PERFORATION SOLUTIONS

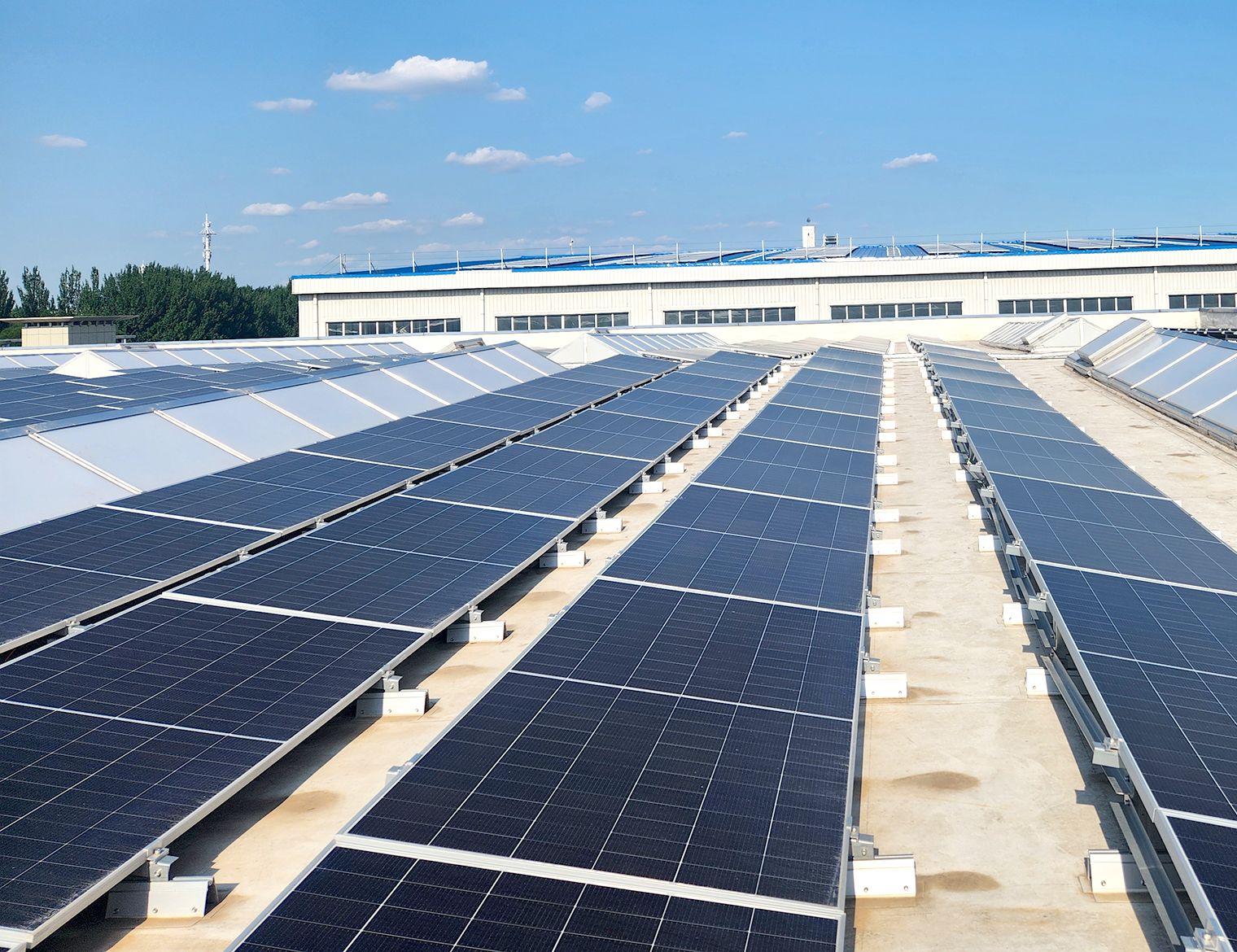

South Tilt Installation Bracket

Type: V-NP-S

Building on the V-NP-F model, we add front and rear columns as well as diagonal braces to the integrated base. This design maintains the PV panels at a 10° south-facing tilt, which effectively boosts power generation while reducing dust accumulation on the panel surfaces.
It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.
After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

V-NP-S is compatible with every type of commercial roofing, and can be used on mechanically attached, fully adhered and ballasted roof systems.

NO PERFORATION SOLUTIONS

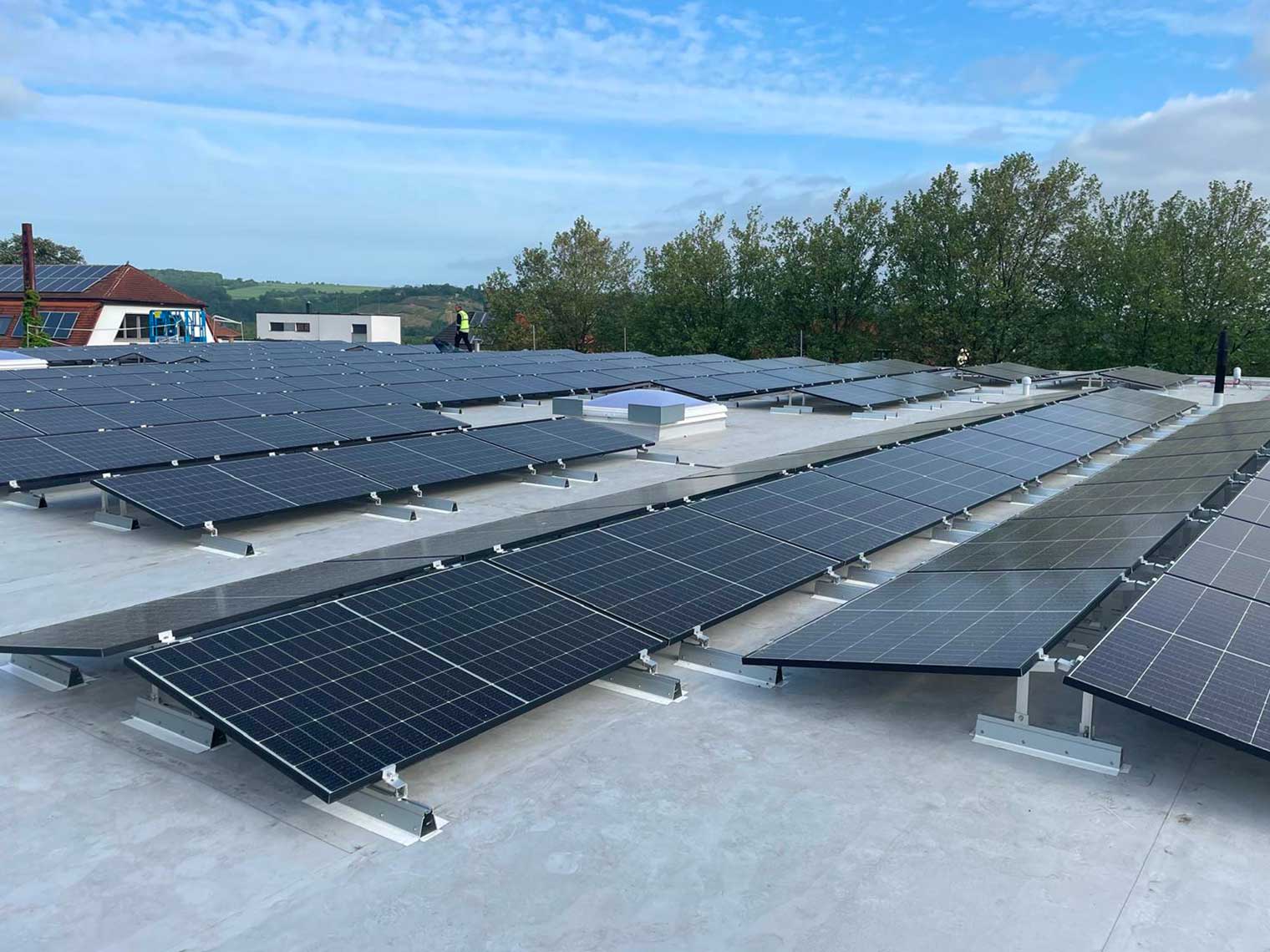

East-West Installation Bracket

Type: V-NP-EW

Building on the V-NP-F model, we add angle-adjusting components to the integrated base, maintaining the PV modules at a 10° east-west tilt. This design not only significantly enhances wind resistance but also ensures stable power output throughout the generation period.
It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.
After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

V-NP-EW is compatible with every type of commercial roofing, and can be used on mechanically attached, fully adhered and ballasted roof systems.

NO PERFORATION SOLUTIONS

Flexible Solar Panels Bracket

Type: V-NP-FP

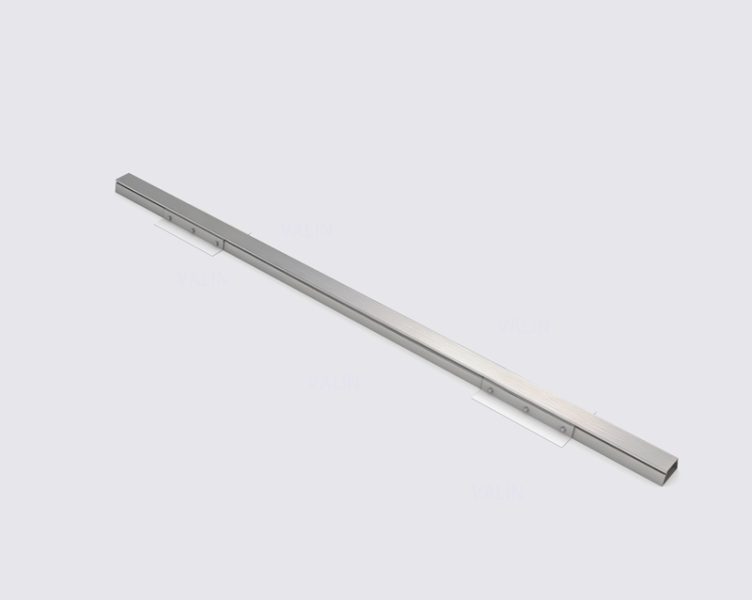

Tailored specifically for lightweight flexible panels, this design accommodates the installation of flexible panels with lengths ranging from 1000mm to 2500mm. By extending the base and increasing its quantity, we provide robust bottom support for flexible panels, eliminating the risk of cell microcracks caused by panel sagging.
It adopts the same hot-melt welding process as the original roof construction, without drilling holes or ballasting.
This effectively eliminates potential water leakage risks and ensures the long-term safety of the entire PV system.
After the integrated Membrane-Rail base is welded onto the roof, the solar panel is directly fastened to the base with clamps.
Suitable for all types and specifications of solar panels.

V-NP-FP is designed for compatibility with all types of commercial roofs and is suitable for mechanically attached, fully adhered, and ballasted roof systems.
